Lecture 18, Tue 12/02

Binary Search Trees cont.

Recorded Lecture: 12_2_25

BST Deletion

• We can break up deletion in three cases:
  • Case 1: When the node to be deleted is a leaf node (no children)
  • Case 2: When the node to be deleted has one child
  • Case 3: When the node to be deleted has two children

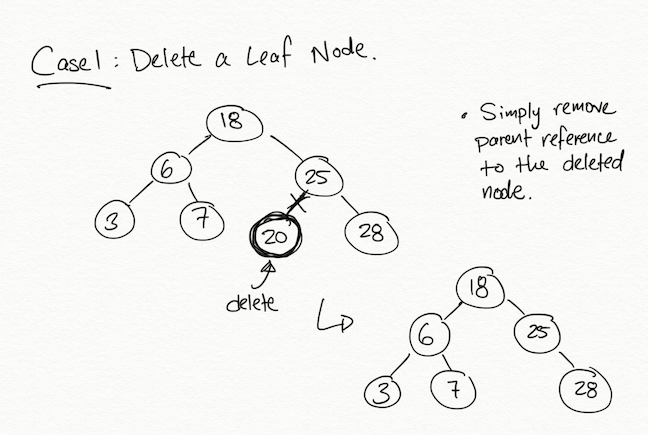

Case 1: Delete a leaf node

• Find the node that needs to be deleted
• Simply remove the parent reference (either left child or right child) to the deleted node

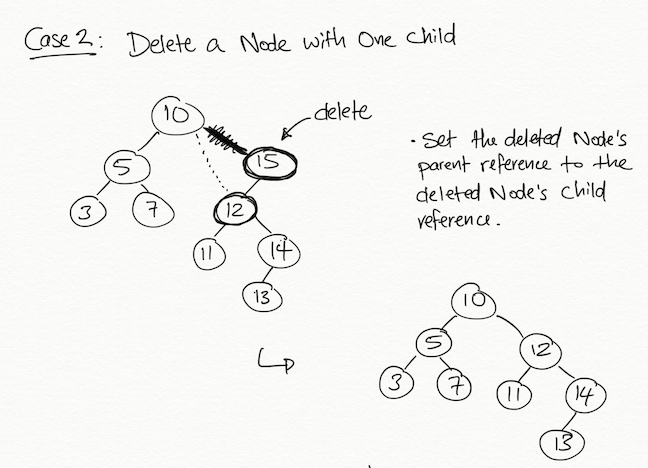

Case 2: Delete a node with one child

• Connect the deleted Node’s parent and the deleted Node’s child together

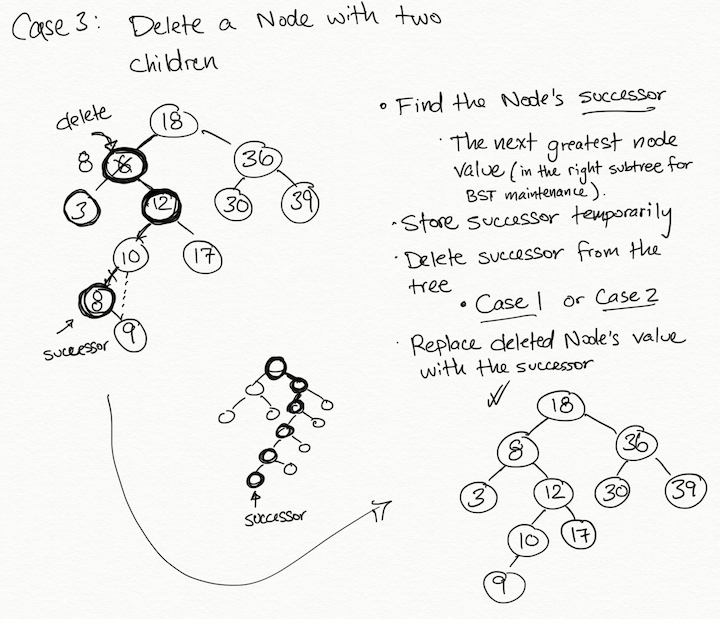

Case 3: Delete a node with two children

• First find the successor (node with next greater value) in the right subtree
  • This can be done by traversing the left children of the node to be deleted’s right subtree
  • Also note that the successor will always only have at most one child
    • If the successor had a left child, then it wouldn’t be the successor!
• Temporarily store the successor and delete the successor from the tree
  • Deleting the successor will fall in either Case 1 or Case 2
• Replace the deleted node’s value with the successor’s value
