Lecture 17, Tue 11/25

Binary Search Trees

Recorded Lecture: 11_25_25

Link to previous Final: F21 Sample Final
Link to previous Final: S23 Sample Final
- Note: use these as a supplemental study guide - the content and difficulty will vary.

Binary Search Tree (BST)

Recall that a binary tree is a tree structure where a node may have at most two children
Binary Search Trees (BST) are binary trees that have the following property:
- Values that are less than the parent are found in the left subtree
- Values that are greater than the parent are found in the right subtree
- This is known as the BST property
Binary Search Trees are also one way to implement a Map Abstract Data Type
- A Map ADT maps keys to corresponding values
- Think of keys defining where in the BST structure a node gets inserted
- And each node has a corresponding value field
- Similar to how Python Dictionaries work on a high-level (but the underlying implementation between a Python Dictionary and BST are different (each with pros / cons))

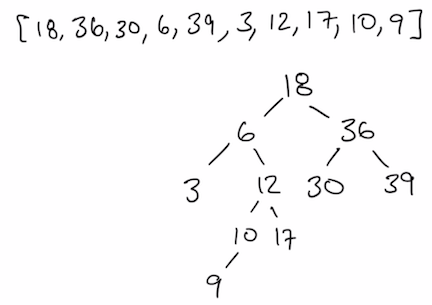

Example: Inserting the following keys into a BST

Note: Insertion order of elements affects the structure of the tree!

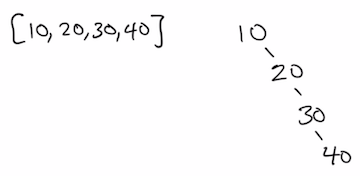

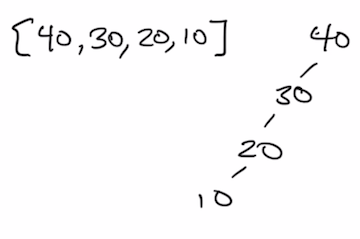

Example: Inserting the same elements in different order

Also note: inorder traversal in a BST will visit the nodes in order - try it out!

BST TreeNode and BST Implementation

# TreeNode.py

class TreeNode:
    def __init__(self,key,val,left=None,right=None, parent=None):
        self.key = key
        self.payload = val
        self.leftChild = left
        self.rightChild = right
        self.parent = parent

    def hasLeftChild(self):
        return self.leftChild # Note: Python considers None as a False value

    def hasRightChild(self):
        return self.rightChild

    def isLeftChild(self):
        return self.parent and self.parent.leftChild == self

    def isRightChild(self):
        return self.parent and self.parent.rightChild == self

    def isRoot(self):
        return not self.parent

    def isLeaf(self):
        return not (self.rightChild or self.leftChild)

    def hasAnyChildren(self):
        return self.rightChild or self.leftChild

    def hasBothChildren(self):
        return self.rightChild and self.leftChild

    def replaceNodeData(self,key,value,lc,rc):
        self.key = key
        self.payload = value
        self.leftChild = lc
        self.rightChild = rc
        if self.hasLeftChild():
            self.leftChild.parent = self
        if self.hasRightChild():
            self.rightChild.parent = self

# BinarySearchTree.py

from TreeNode import TreeNode

class BinarySearchTree:
    def __init__(self):
        self.root = None # A BST just needs a reference to the root node
        self.size = 0 # Keeps track of number of nodes

    def length(self):
        return self.size

    def put(self,key,val):
        if self.root:
            self._put(key,val,self.root)
        else:
            self.root = TreeNode(key,val)
        self.size = self.size + 1

    # helper method to recursively walk down the tree
    def _put(self,key,val,currentNode):
        if key < currentNode.key:
            if currentNode.hasLeftChild():
                self._put(key,val,currentNode.leftChild)
            else:
                currentNode.leftChild = \
                TreeNode(key,val,parent=currentNode)
        else:
            if currentNode.hasRightChild():
                self._put(key,val,currentNode.rightChild)
            else:
                currentNode.rightChild = \
                TreeNode(key,val,parent=currentNode)


    def get(self,key): # returns payload for key if it exists
        if self.root:
            res = self._get(key,self.root)
            if res:
                return res.payload
            else:
                return None
        else:
            return None

    # helper method to recursively walk down the tree
    def _get(self,key,currentNode):
        if not currentNode:
            return None
        elif currentNode.key == key:
            return currentNode
        elif key < currentNode.key:
            return self._get(key,currentNode.leftChild)
        else:
            return self._get(key,currentNode.rightChild)

# pytests

from BinarySearchTree import BinarySearchTree

def test_constructBST():
    BST = BinarySearchTree()
    assert BST.root == None
    assert BST.length() == 0

def test_insertRoot():
    BST = BinarySearchTree()
    BST.put(10, "ten")
    assert BST.root.key == 10
    assert BST.root.payload == "ten"
    assert BST.root.hasLeftChild() == None
    assert BST.root.hasRightChild() == None
    assert BST.root.isLeftChild() == None
    assert BST.root.isRightChild() == None
    assert BST.root.isRoot() == True
    assert BST.root.hasAnyChildren() == None
    assert BST.root.isLeaf() == True
    assert BST.root.hasBothChildren() == None
    BST.root.replaceNodeData(20, "twenty", None, None)
    assert BST.root.key == 20
    assert BST.root.payload == "twenty"

def test_insertNodes():
    BST = BinarySearchTree()
    BST.put(10, "ten")
    BST.put(20, "twenty")
    BST.put(15, "fifteen")
    BST.put(5, "five")
    assert BST.root.key == 10
    assert BST.root.leftChild.key == 5
    assert BST.root.rightChild.key == 20
    assert BST.root.rightChild.leftChild.key == 15
