Lecture 14, Thu 11/13

Quicksort, Trees

Recorded Lecture: 11_13_25

Quicksort

• Another divide-and-conquer algorithm
• Can improve running times to O(n log n) in a typical case, but we’ll see how this can also lead to O(n²) in a worst-case scenario
• Idea:
• We can sort a list by subdividing the list based on a PIVOT value
  • Place elements < pivot to the left-side of the list
  • Place elements > pivot right-side of the list
  • Recurse for each left / right portion of the list
  • When sub list sizes == 1, then entire list is sorted

How do we partition the list into left / right sub lists?

1. Choose pivot (typically first element in list)
2. leftmark index is on left-most side of list, rightmark index is on right-most side of list, and both leftmark and rightmark work inwards
3. Find an element in the left side (using leftmark index) that’s out-of-place (> pivot)
4. Find an element in the right side (using rightmark index) that’s out-of-place (< pivot)
5. Swap out-of-place elements with each other
   • We’re putting them in the correct side of the list!
6. Continue doing steps 1 - 5 until the rightmark index < leftmark index
7. Swap the pivot with rightmark index
   • We’re putting the pivot element in the correct place!

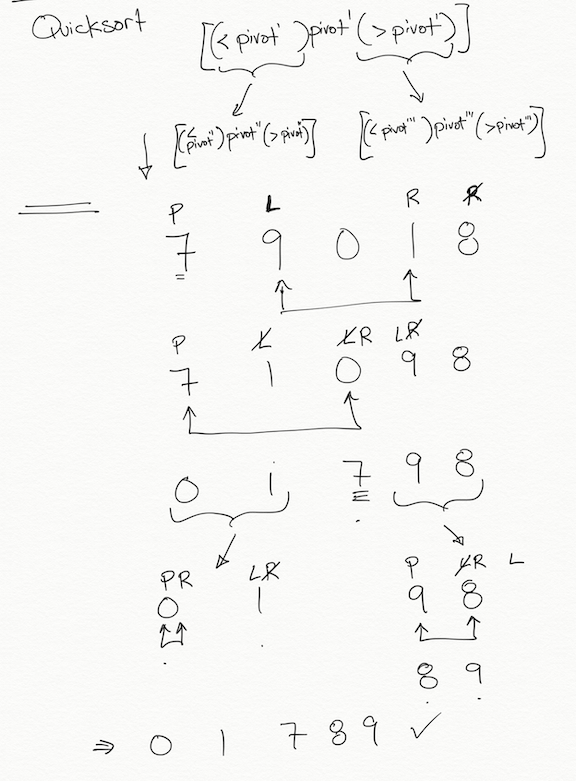

Quick Sort Hand Drawn Example

Quick Sort Implementation

def quickSort(alist):
    quickSortHelper(alist, 0, len(alist) - 1)

# helper function so we can pass in the first / last index
# of lists
def quickSortHelper(alist, first, last):
    if first < last:

        # will define the indices of the left / right sub lists
        splitpoint = partition(alist, first, last)

        # recursively sort the left / right sub lists
        quickSortHelper(alist, first, splitpoint-1) # left
        quickSortHelper(alist, splitpoint+1, last) # right

# partition function will organize left sublist < pivot
# and right sub list > pivot
def partition(alist, first, last):
    pivotvalue = alist[first] # choose first element as pivot

    leftmark = first + 1
    rightmark = last

    done = False
    while not done:

        # move leftmark until we find a left element > pivot
        while leftmark <= rightmark and alist[leftmark] <= pivotvalue:
            leftmark = leftmark + 1

        # move rightmark until we find a right element < pivot
        while rightmark >= leftmark and alist[rightmark] >= pivotvalue:
            rightmark = rightmark - 1

        # check if we're done swapping left / right elements in
        # correct side
        if rightmark < leftmark:
            done = True
        else: # swap left and right elements into correct side of list
            temp = alist[leftmark]
            alist[leftmark] = alist[rightmark]
            alist[rightmark] = temp

    # put the pivot value into the correct place (swap pivot w/ rightmark)
    temp = alist[first] # pivot
    alist[first] = alist[rightmark]
    alist[rightmark] = temp

    return rightmark

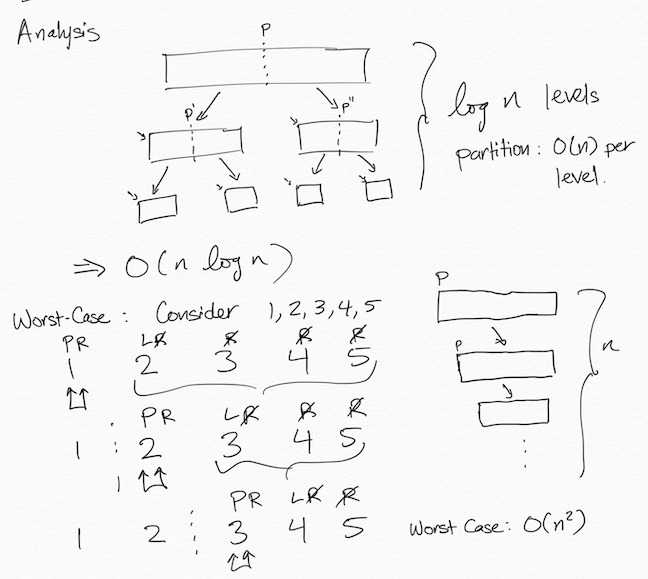

Quick Sort Analysis

• Best-case running time is O(n log n)
  • In the best case, there are log n levels. Each level is O(n) when performing the partition step
• However, the worst case is O(n²)
  • Consider the case where the list is already sorted (or in reverse order)
  • The sub lists aren’t evenly divided for every recursive call
  • Quick Sort performance is dependent on the pivot value!
  • Can try to improve the pivot choice by selecting random values and choosing the medium
  • Textbook describes the median of three approach
    • Choose first, middle, and last element. Choose the median of these values
    • But even then, there is no guarantee that these values are good pivot values, but it does improve our chances that they are
• Note that Quicksort DOES NOT need extra space (unlike merge sort)

Trees

Terminology

• Node - An element in the tree. May have an incoming edge and many outgoing edges.
• Edge - A connection between nodes (can be directional or bidirectional)
• Root - The top most node (node without any incoming edges)
• Path - The sequence of nodes from one node to a destination node along the tree
• Children - Nodes that have incoming edges from another node
• Parent - Contains outgoing edges to other child nodes
• Sibling - Nodes that have the same parent
• Subtree - A tree structure where the root of the tree is a child of a parent
• Leaf - A node without any outgoing edges
• Level - Number of edges from the root node to a destination node
• Height - Maximum level of the entire tree
