Lecture 15, Thu 11/19

Quicksort cont., Trees

Recorded Lecture: 11_19_20

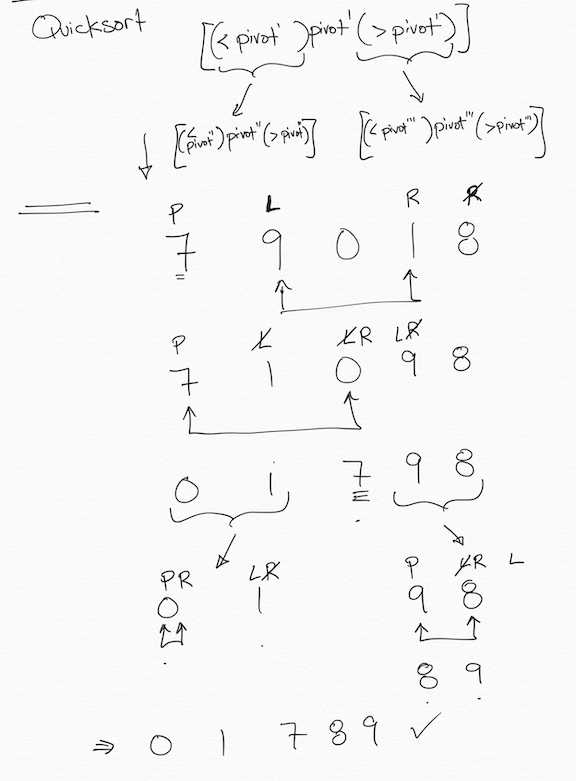

Quick Sort Hand Drawn Example

Quick Sort Implementation

def quickSort(alist):
	quickSortHelper(alist, 0, len(alist) - 1)

# helper function so we can pass in the first / last index
# of lists
def quickSortHelper(alist, first, last):
	if first < last:

		# will define the indices of the left / right sub lists
		splitpoint = partition(alist, first, last)

		# recursively sort the left / right sub lists
		quickSortHelper(alist, first, splitpoint-1) # left
		quickSortHelper(alist, splitpoint+1, last) # right

# partition function will organize left sublist < pivot
# and right sub list > pivot
def partition(alist, first, last):
	pivotvalue = alist[first] # choose first element as pivot

	leftmark = first + 1
	rightmark = last

	done = False
	while not done:

		# move leftmark until we find a left element > pivot
		while leftmark <= rightmark and alist[leftmark] <= pivotvalue:
			leftmark = leftmark + 1

		# move rightmark until we find a right element < pivot
		while rightmark >= leftmark and alist[rightmark] >= pivotvalue:
			rightmark = rightmark - 1

		# check if we're done swapping left / right elements in
		# correct side
		if rightmark < leftmark:
			done = True
		else: # swap left and right elements into correct side of list
			temp = alist[leftmark]
			alist[leftmark] = alist[rightmark]
			alist[rightmark] = temp

	# put the pivot value into the correct place (swap pivot w/ rightmark)
	temp = alist[first] # pivot
	alist[first] = alist[rightmark]
	alist[rightmark] = temp

	return rightmark

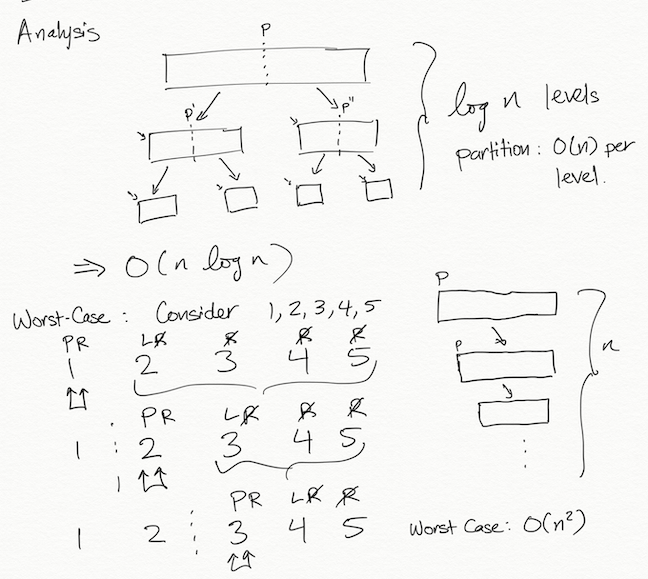

Quick Sort Analysis

• Best-case running time is O(n log n)
  • In the best case, there are log n levels. Each level is O(n) when performing the partition step
• However, the worst case is O(n²)
  • Consider the case where the list is already sorted (or in reverse order)
  • The sub lists aren’t evenly divided for every recursive call
  • Quick Sort performance is dependent on the pivot value!
  • Can try to improve the pivot choice by selecting random values and choosing the medium
  • Textbook describes the median of three approach
    • Choose first, middle, and last element. Choose the median of these values
    • But even then, there is no guarantee that these values are good pivot values, but it does improve our chances that they are
• Note that Quicksort DOES NOT need extra space (unlike merge sort)

Trees

Terminology

• Node - An element in the tree. May have an incoming edge and many outgoing edges.
• Edge - A connection between nodes (can be directional or bidirectional)
• Root - The top most node (node without any incoming edges)
• Path - The sequence of nodes from one node to a destination node along the tree
• Children - Nodes that have incoming edges from another node
• Parent - Contains outgoing edges to other child nodes
• Sibling - Nodes that have the same parent
• Subtree - A tree structure where the root of the tree is a child of a parent
• Leaf - A node without any outgoing edges
• Level - Number of edges from the root node to a destination node
• Height - Maximum level of the entire tree
